Product

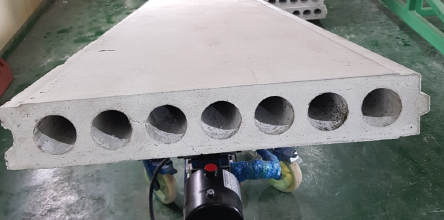

Hollow lightweight panel(HLC)
03. Product Specificity and Application Range
- Product Specificity
-
Ultra-light weighting and ease of construction
The weight of a single panel is 1/4 of that of a brick wall (140 sheets), which conveniently handles load reduction, sawing, nails, and defect processing. In particular, wires and piping can be inserted into the hollow for easy finishing.
-
Strong in earthquake
The main body of the prefabricated Partition Well is of a hollow type, reinforced with a fiber reinforced with a steel frame, and is connected to the panel and the panel's bump structure, so the impact and bending performance is higher than that of the brick wall, which can be more robust than 6 to 7 degrees.
-
Sound Insulation, Thermal Performance
The air insulation performance of the panels (35Db or higher) is excellent, the partition sound of the apartment house is good, and the insulation is good, which is con- sistent with the national energy saving and environmental building requirements
-
Excellent water-resistance
Panel's unique foam technology and water discharge treatment provide good waterproofing, allowing for toilet and kitchen use with a depth of less than 20mm from 48 hours of flooding.
-
Excellent fireproof
It is composed of fully inorganic materials, so no fire is generated, no gas is generated, and does not spread in case of fire from other substances and is un fired on its own.
-
Cost reduction of construction
25% of the weight of the existing concrete structure or bricks for slimming down of foundation members and for recycling industrial products such as columns where loads are transferred due to load reduction.indirectly resulting in a significant cost reduction
-
Environment-friendly
It minimizes environmental problems such as the occu- rrence of CO2 caused by cement use and uses a mix of about 40% of non-harmful industrial byproducts (stone powder, F/A, B/A) under the Resource Circulation Act, which is an excellent eco-friendly product that is popular among the nation as well as the people.
- Application Range
- the interior partition of public and private apartments and row houses
- Hospitals and nursing homes (elders), officetels, and hotels (firewalls, fireproofs)
- Education facilities such as schools, academies, dormitories
- entertainment restaurants such as basement karaoke and pubs
- Partition and logistics warehouse of stores in the public wholesale market
* Remodeling (Replace flammable materials for above-mentioned structures)
